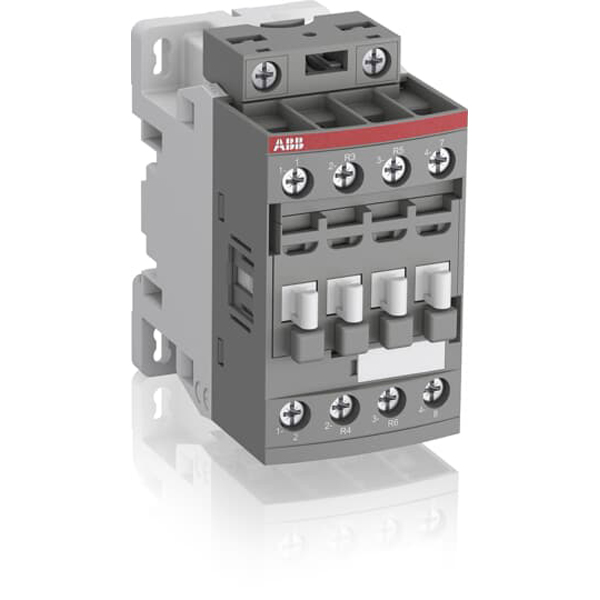

ABB 1SBL137501R1300 4 Pole AC/DC operated contactor with screw terminals. The AF09-22-00-13 contactor is used for controlling power circuits up to 690V AC and 440V DC. They are mainly used for controlling non-inductive or slightly inductive loads (i.e. resistance furnaces). AF contactors include an electronic coil interface accepting a wide control voltage Uc min to Uc max. Only four coils cover control voltages between 100 to 250V 50/60Hz or 100 to 250V DC. AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. The AF series 4 Pole contactors are of the block type design. Main poles and auxiliary contact blocks, 2NO + 2NC main poles, front and side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1).
