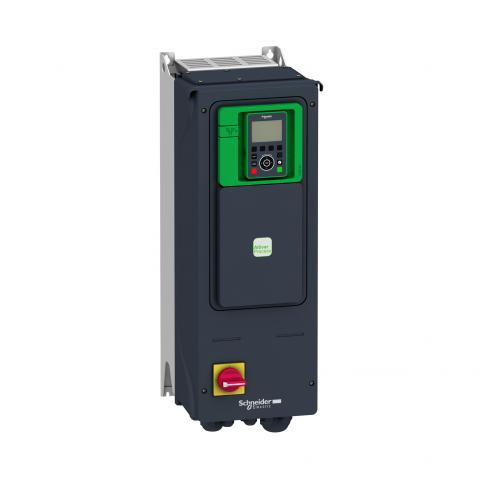

Variable speed drive ATV650, 15kW/20HP, 380…480V, IP55, disconnect switch. range of product: Altivar Process ATV600 – product or component type: variable speed drive – product specific application: process and utilities – device short name: ATV650 – variant: with disconnect switch – product destination: asynchronous motors, synchronous motors – mounting mode: wall mount – EMC filter: integrated EN/IEC 61800-3 category C2 <= 50 m, integrated EN/IEC 61800-3 category C3 <= 150 m - IP degree of protection: IP55 conforming to IEC 60529, IP55 conforming to IEC 61800-5-1 - type of cooling: forced convection - motor power kW: 11 kW heavy duty, 15 kW normal duty - motor power hp: 15 hp heavy duty, 20 hp normal duty - line current: 18.1 A 480 V heavy duty, 20.6 A 380 V heavy duty, 23.3 A 480 V normal duty, 27 A 380 V normal duty - prospective line Isc: 50 kA - apparent power: 15 kVA 480 V heavy duty, 19.4 kVA 480 V normal duty - continuous output current: 23.5 A 4 kHz heavy duty, 31.7 A 4 kHz normal duty - maximum transient current: 34.9 A 60 s normal duty, 35.3 A 60 s heavy duty - asynchronous motor control profile: constant torque standard, optimized torque mode, variable torque standard - synchronous motor control profile: permanent magnet motor, synchronous reluctance motor - output frequency: 0.0001...0.5 kHz - speed drive output frequency: 0.1...599 Hz - nominal switching frequency: 4 kHz - switching frequency: 2...12 kHz adjustable, 4...12 kHz with derating factor - discrete input logic: 16 preset speeds - communication port protocol: Ethernet, Modbus serial, Modbus TCP - option card: communication module BACnet MS/TP, communication module CANopen daisy chain RJ45 slot A, communication module CANopen screw terminals slot A, communication module CANopen SUB-D 9 slot A, communication module DeviceNet slot A, communication module Ethernet IP/Modbus TCP/MD-Link slot A, communication module Ethernet Powerlink, communication module Modbus TCP/EtherNet/IP slot A, communication module Profibus DP V1 slot A, communication module Profinet slot A, digital and analog I/O extension module slot A/slot B, output relay extension module slot A/slot B.
